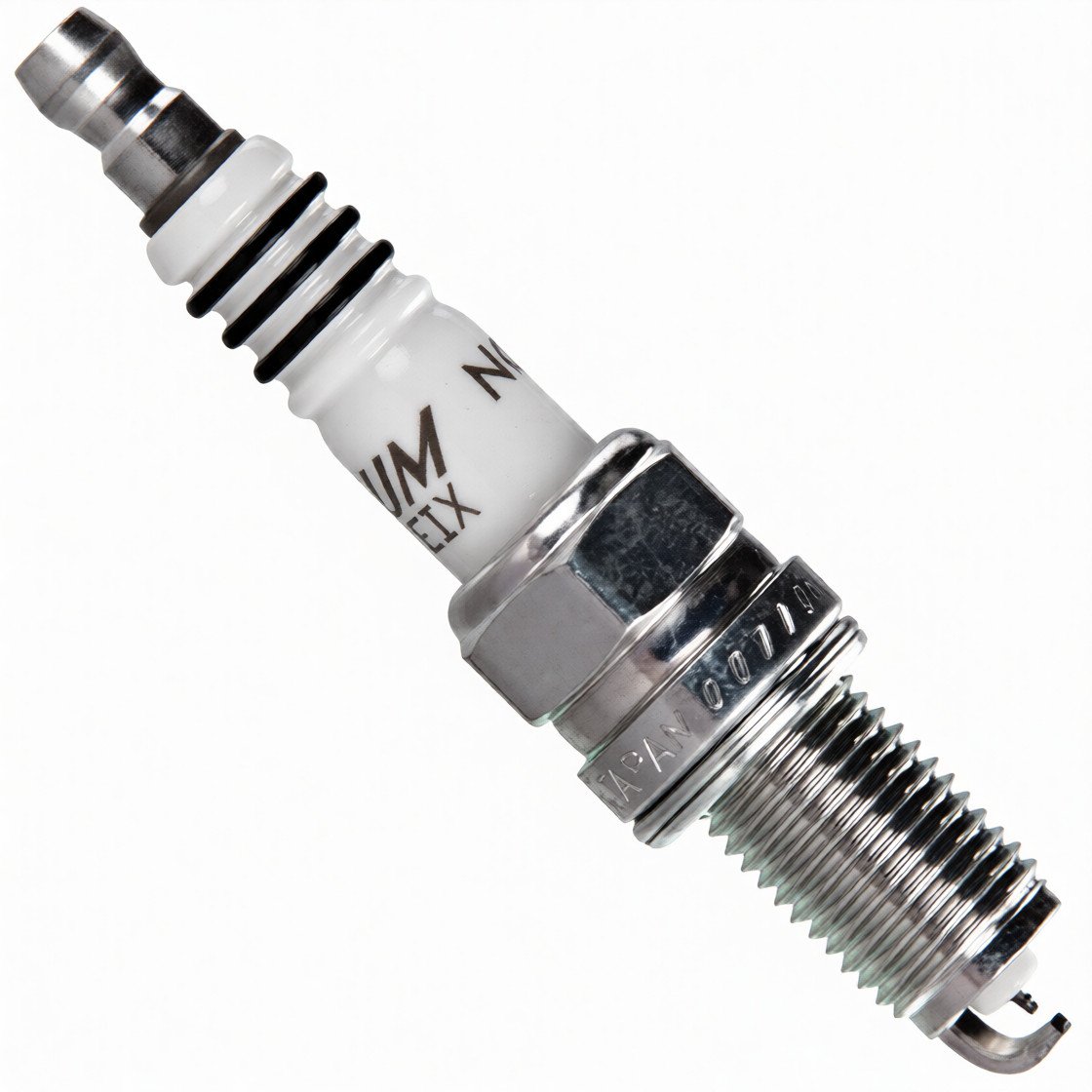

NGK žvakė DCPR6EIX Iridium

• Sriegio skersmuo: M12
• Sriegio žingsnis: 1.25 mm
• Sriegio ilgis: 19 mm
• Rakto dydis: 16 mm (5/8″)
• Elektrodas: Iridium, fine wire 0.6 mm
• Tarpo dydis: 0.8 mm
• Tipas: Projekcinis, vienos masės elektrodas
• Kontaktas: nuimama veržlė – tinka tiek pypkės jungčiai, tiek U formos spaustukui
• Varža: yra, 5 kΩ
• Šiluminis diapazonas: 6 (NGK)
• Rekomenduojama užveržimo jėga: 14,6–19,7 Nm (aliuminiui), 14,6–24,4 Nm (ketui)

Tinka:

• Johnson: EL4SRC, R4SR, RL4SR, RBL4SR, RE4SR, TEL4SR, R4STC, BL4STS, LE4STS, L4STC, BL4STC, RE4STC, TEL4STC, J15R4SR, J15RL4SR, J15TE4SR, J15TEL4SR, PL4SRM, PL4SRS, PL4STC
• Mariner: 15 Carb, Fourstroke 2.5, 2.5 Carb, 20 Carb, 25 EFI, Fourstroke 3.5, 3.5 Carb, 4 12mm Plug, Fourstroke 4, Sailmate, 5 12mm Plug, Fourstroke 5, 6 12mm Plug, Fourstroke 6, 8, 9.9
• Mercury: FourStroke 10 Carb, FourStroke 15 Prokicker Bigfoot SeaPro Carb, FourStroke 2 Carb, FourStroke 2.5 Carb, FourStroke 20 Carb, FourStroke 25 Jet SeaPro 3-Cyl EFI, FourStroke 25 3-Cyl EFI, FourStroke 3.5 Carb, FourStroke 4, 40 EFI Bigfoot, FourStroke 5, FourStroke 6, FourStroke 8, FourStroke 9.9 Bigfoot Prokicker
• Nissan: NS F20C, NSF 15A, 15B, 15B2, 15C, 18B, 18B2, 2.5B, 25A, 25B, 2A, 3.5A, 3.5B, 30A, 30B, 4, 4A, 4A2, 4B, 5, 5A, 5A2, 5B, 5C, 6, 6A, 6A2, 6B, 6C, 8A, 8A3, 9.8A, 9.8A3, 9.9A, 9.9B, 9.9B2
• Suzuki: DF9.9, DF15, DF25, DF30, DF40, DF40A, DF50, DF50A, DF50AV, DF60A, DF60AV, DF70A, DF80A, DF90A, DF99TH
• Tohatsu: M2.5B, MFS2A, 2.5B, 3.5A, 3.5B, 4A, 4A2, 4B, 4C, 5, 5A, 5A2, 5A2S, 5B, 5C, 6A, 6A2, 6A2S, 6B, MSF6C, 8A3, 8B, 9.8A3, 9.8B, 9.9A, 9.9B, 9.9B2, 15A, 15B, 15B2, 15C, 18B, 18B2, 20C, 20D, 25A, 25B, 25C, 30A, 30B, 30C, MSF8A, MSF9.8A

OEM kodai: NGK: DCPR6EIX
